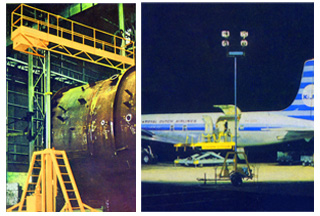

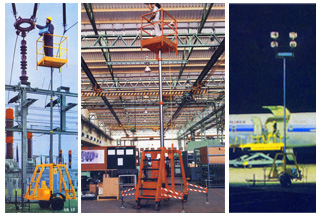

HIGH-RISE LIFT / WORKING PLATFORMS
- Hydraulic telescopic working platform up to 22 meters height, 350 kgs head load
- Extended swiveling platforms up to 3 meter reach can be provided
- Platforms can be mounted on road worthy trailers up to 20 kmph speed on good roads
- Attachment to forklift platforms with reach up to 9 meters available
- Can be attached to any make of fork lift with coupling and decoupling in just minutes
Hydraulic Actuators range of high-rise lifts/working platforms are built using state of the art German technology. Their stability against overturning confirms to requirement of DIN 15120 allowing safe operation at wind speeds up to force 6 gale.
All control voltages stepped down to 24 volts for safety of operator. The hydraulic telescopic cylinder used is produced from imported high tensile pipes, OD and ID ground/honed and hard chrome plated both on the OD and ID. Overload sensing device prevents upper sections of cylinder from going up in case of basket is overloaded beyond capacity.
